Convoy

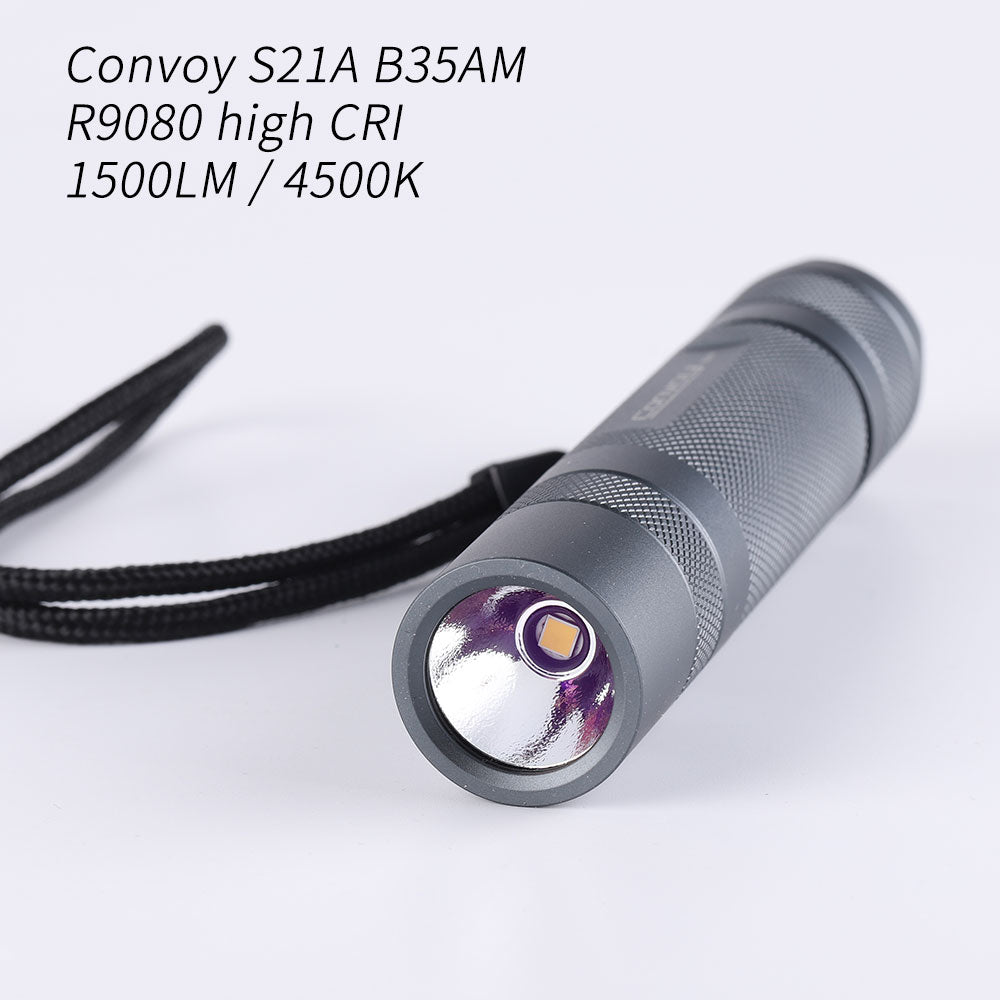

Convoy S21A with B35AM R9080 high CRI 4500K 1500LM21700 flashlight

Write a review
| Ask a question

Regular price $25.95 USD
Regular price $29.95 USD Sale price $25.95 USD
Tint
Color

PARAMETER

Material:  Aluminum Alloy

LED: NICHIA B35AM R9080 high CRI LED

Low voltage warning:  Yes

Reverse polarity protection:  Yes

Lens type:  Ar-coated glass lens

Reflector: orange peel

Mode memory: Yes

Tailstand:  Yes

Battery included:  No

Required battery type:  21700 lithium battery (length not more than 71mm)

Required battery quantity: 1pcs

Driver: 12groups, max current output 3000mA, Temperature protection management inside

Length / Diameter : 123mm / 26.6mm

Weight: 88g

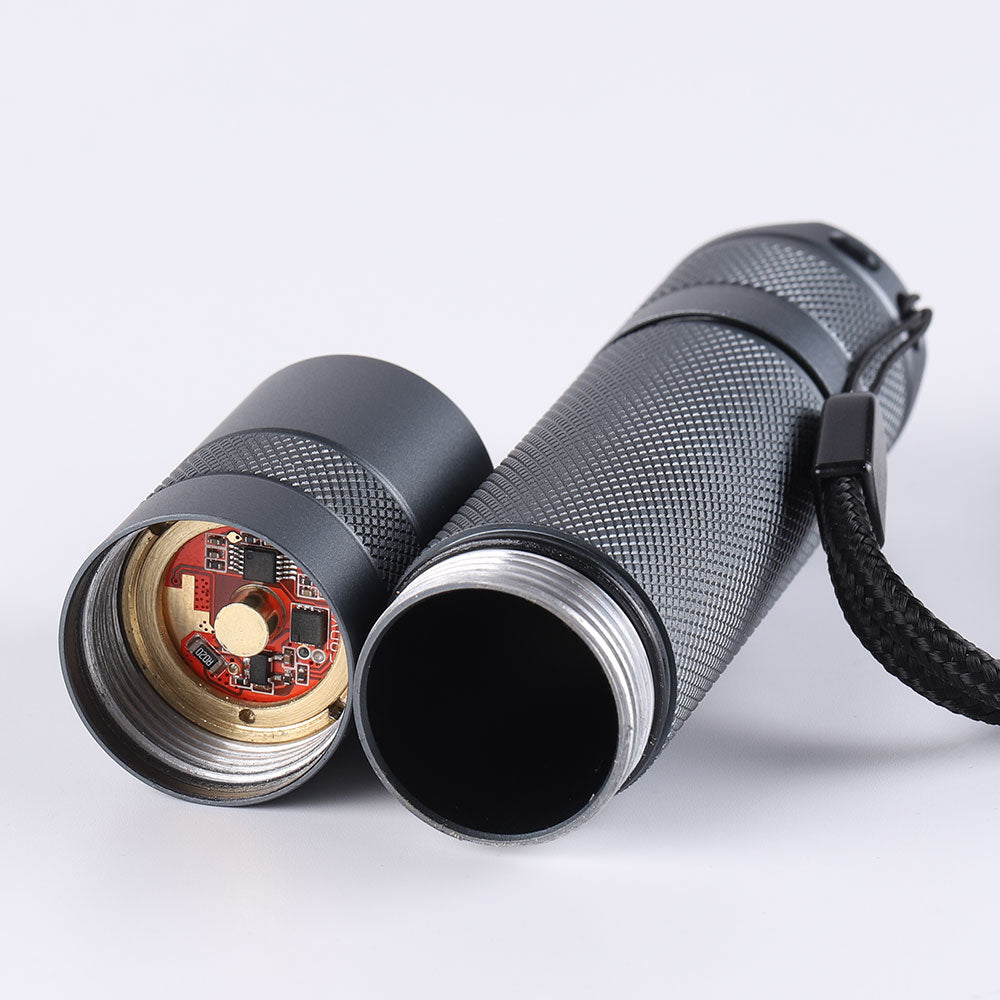

Driver (12groups):

max current output is 3000mA

Its biggest advantage is that no frequency can be seen in any mode, and there is temperature management.

It can control the flashlight temperature not to exceed 55 degrees Celsius,

If the flashlight temperature is below 55 degrees Celsius, it will output full current. If it is above 55 degrees Celsius, it will constantly adjust the current so that the flashlight will not overheat.



 12 groups:
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check  instructions:
 <2.95V    1 flash,
2.95-3.25V  2 flashes,
3.25-3.55V  3 flashes,
3.55-3.85V  4 flashes,
>3.85V     5 flashes
