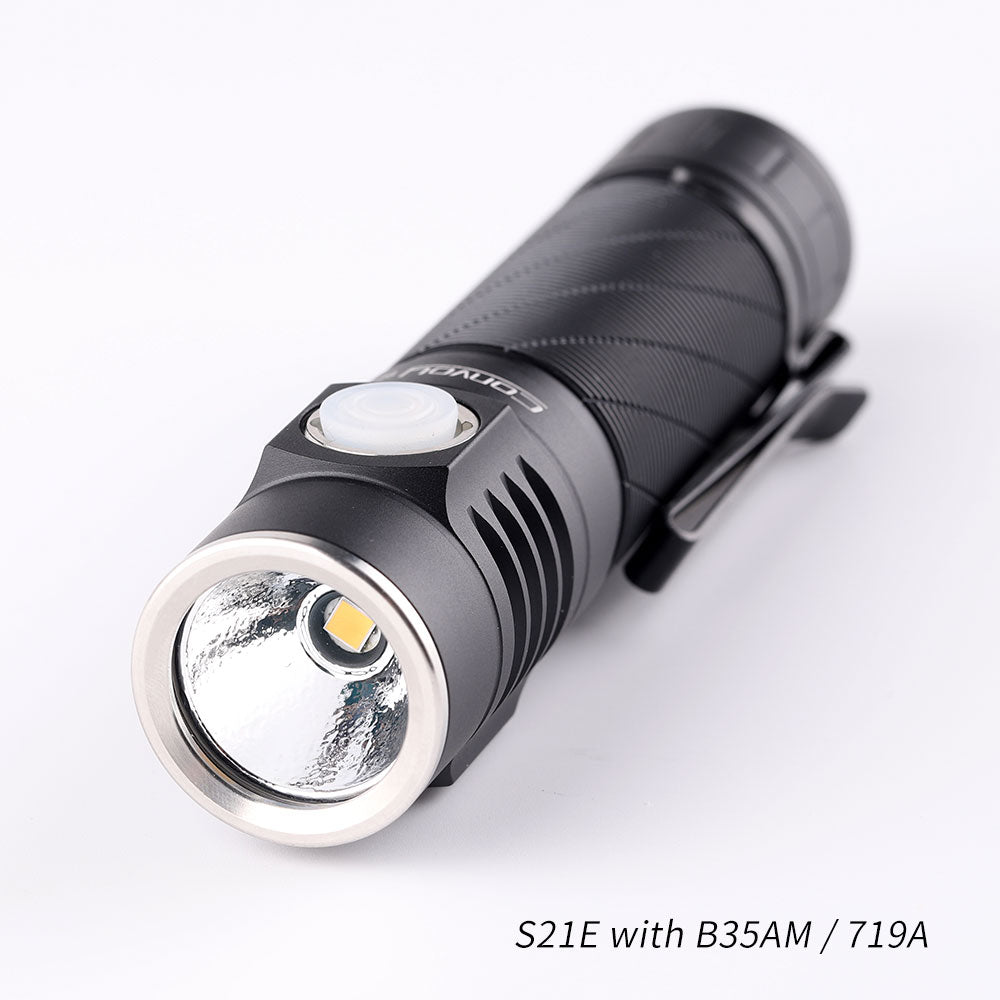

Convoy S21E B35AM Nichia 719A 21700 high CRI R9080 Flashlight

Parameter:

LED: 1 * B35AM / 719A

Luminous flux: max 1000-1200LM

CRI: B35AM R9080, 719A R9050

Mode: see detailed description later

Brightness memory: Yes

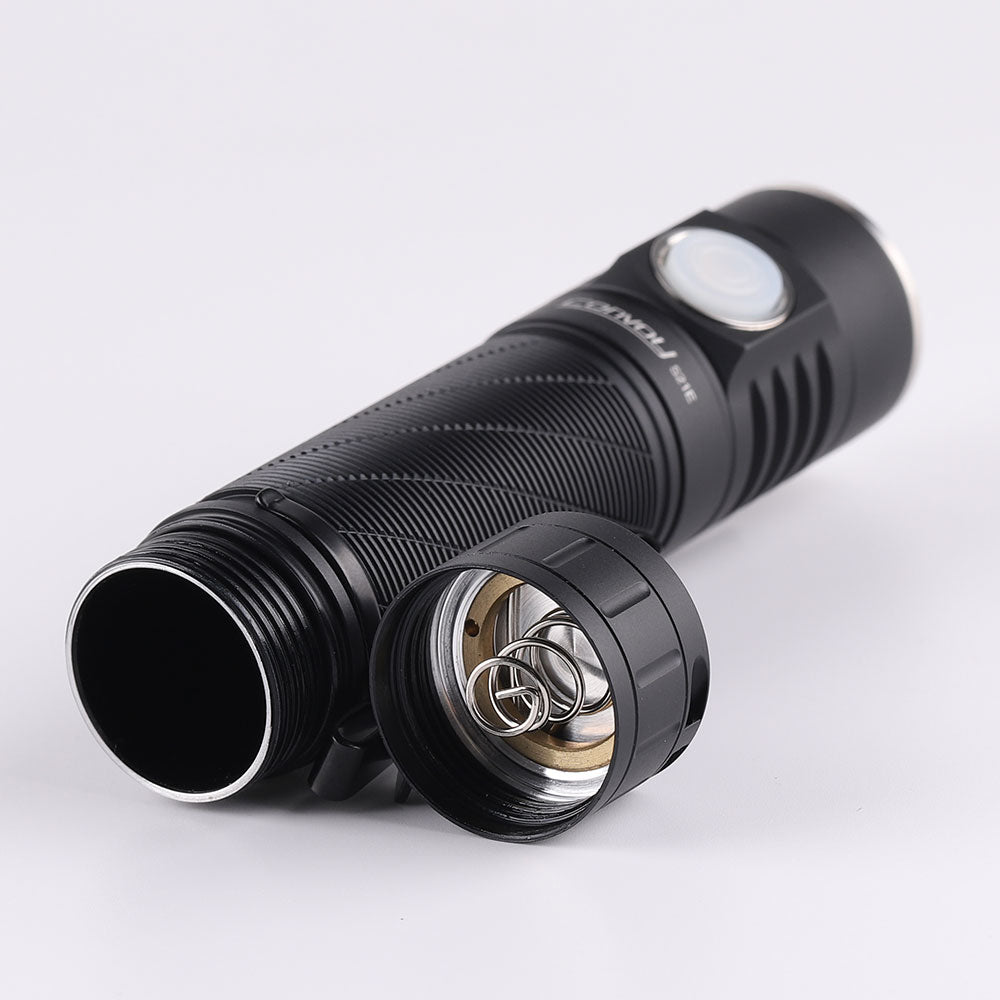

Battery: 1 * 21700 lithium battery flat head without protection (not included)

Material: aluminum alloy

Waterproof rating: IPX4

Switch type: electronic switch (with standby current)

Driver output current: max 2.2A

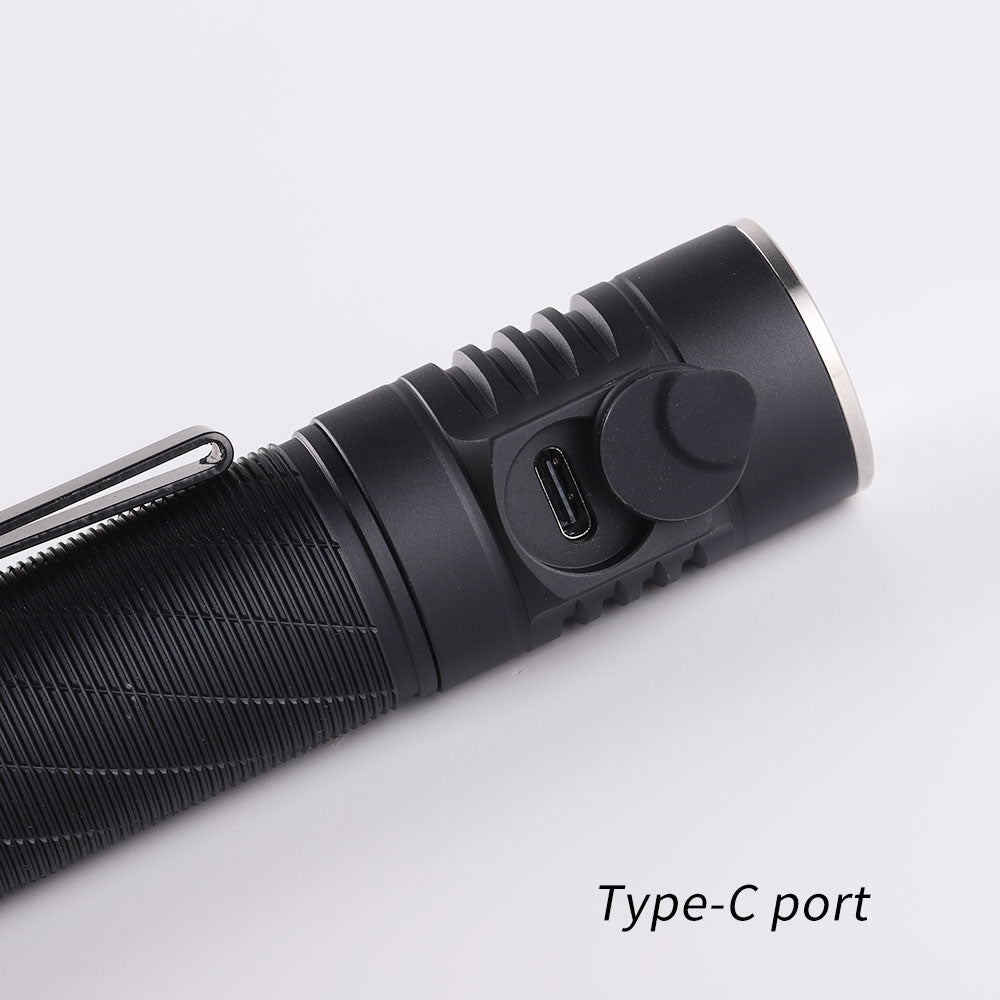

Charging port: TYPE-C charging interface, charging current 2A, the product does not include a charging cable.

Reflector type: orange peel

Lens: ar-coated glass

Size: 27.3mm (diameter), 116.4mm (length)

weight : 88g (without packaging, batteries, headlight straps, and holding clips)

 The flashlight has low voltage protection and temperature control protection.

8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )

5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

4.flashlight off,3-click the button   ——>  strobe

3.flashlight on or off, 2-click the button  ——>  turbo 100%

2.flashlight off, press the button  ——>  moonlight mode  0.01A (0.2%)   [This brightness will not be remembered]

1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
