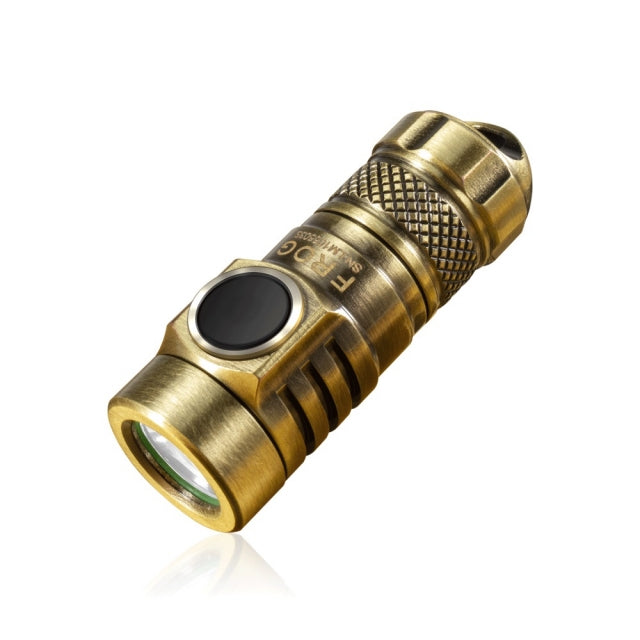

LUMINTOP Frog V2.0 570LM 135M THROW EDC FLASHLIGHT

Specifications

Operation Instruction

General Modes: Low-Med-High (with mode memory);

Hidden Modes: Moonlight, Turbo

1) ON/OFF:One click the switch for ON, press and hold for 1 second for OFF.

2) Output change: One click the switch from ON.

3) Moonlight: Press and hold the switch for 1second from OFF, another
click will enter the general mode.

4) Turbo: Two quick clicks from ON, another click will enter the general mode.

5) Two quick clicks from OFF will enter High mode, another click will
enter the general mode.

Low-voltage Protection

The flashlight will automatically downshift the outputs when the battery
voltage is dropped to prevent battery damage from over-discharge.

1) Under 3.2V,a max of 60% of the mode performance is allowed
except Low

2) Under 3.1V, the flashlight will blink as a reminder, max 20% of the
mode performance

3) 3.0V, Moonlight mode only

4) 2.9V,the flashlight will shut off automatically

Over-heat Protection

The flashlight will accumulate lots of heat when running on High or
Turbo for a long time. To ensure a comfortable user experience, the
flashlight will downshift the outputs automatically when the temperature
reaches 45C or above, and it will recall the previous output when the
temperature goes down to 40C.

About the Battery

1.A 10180 is included in the package.

2.When using the 10440 Li-ion battery, a long tube is required. The
long tube and battery are sold separately.

3.To charge the 10180 Li-ion battery via the charger that comes with
Max charging currentis 0.1A, it will take about 1.5 hours to fully
charge the cell.

4.A battery with a good reputation is recommended when replacing a
new one, and make sure the anode side of the battery always goes
towards the flashlight head side.

5.Charging instruction: ①Remove the light head.②Remove the cap
from the charging unit.③Connect the tube (battery included) with
the charging unit. ④Insert the charging cable and connect with the
power source to start the charging process.⑤The charging
indicator is Red when charging, Green when charging is completed.

Warnings

1) Keep away from children.

2) Do not shine point directly ata person, animal, moving vehicles or
flamable materials.

3) Do not throw into fire in case of explosion.

4) To charge the battery three months a time if long time no uses.

Package Included

1.1*Frog Flashlight

2.1*Manual

3.1*keychain

4.2*O-ring

5.1*Type-C charging cable

6.1*Type-C charging adapter
