LUMINTOP

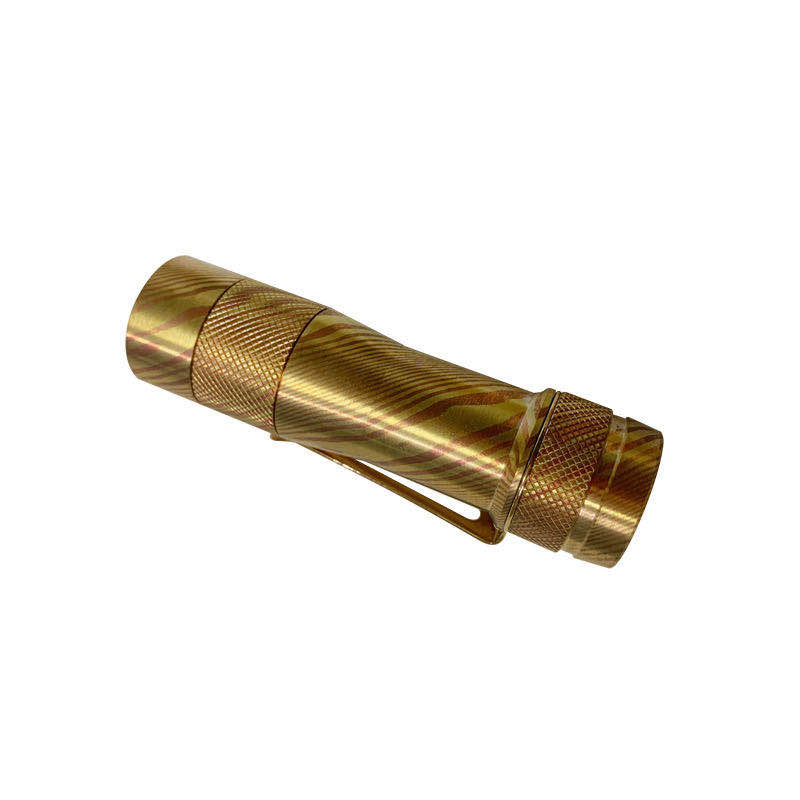

LUMINTOP FW3A Mokume/Damast Deposit

1 Review
| 1 answered question

$20.00 USD
$0.00 USD $20.00 USD
Options
Knurling

This is just for Deposit, the shipping cost will refund.

LUMINTOP FW3A Mokume/Damast Group Buy Deposit


Lumintop will make some Mokume/Damast FW3A in May.
and if you are interesting to join the group buy, pls read here and leave your info.
LUMINTOP FW3A Mokume/Damast

if you already join the group buy, you need to pay the Deposit.
and when the light ready to ship then to pay the rest.
Estimate finish at 8th June.

Group Price: Mokume/Damast       $199.95
Discount: Buy two, one get 10% OFF,
                Buy three , 2 get 10% off
                ...

Specifications

Emitter:   Three LEDs on a copper DTP MCPCB e.g.
                 Cree XP-L HI 3D(NW 5000K) and Cree XP-L HI 7A(WW 3300K) LED
                 Cree XP-L HI 1A(CW 6500K)
                 Nichia 219C 4000K
Optic:       Standard TIR optics
Lens:       Glass with anti-reflective coating
Flux:        ~2800 lm (XP-L Hi), ~1600 lm (Nichia)
Intensity: ~12 500 cd ANSI throw ~223 m (XP-L Hi)
Firmware:  lume1 - FW3X Constant Current Buck-Boost & FET Driver with Anduril + RGB Aux
                  We plan to use this driver, but will consider if the driver can finish in May, if can't finish,will send a confirm
                  message if wait the lume1 driver or proceed with original FW3A driver.
Battery:  One flat-top or button-top 18650 cell. An unprotected cell is recommended.
                Max. length 66 mm. Cell is not included.
Driver:    FET+7+1 driver. Low parasitic drain while OFF
Body:      Mokume/Damast
Switch:   Electronic tail switch
Ingress rating: Equivalent to IPX7
Weight:  Approximately 53 g without cells
Size:      25.5 mm Ø head x 92.5 mm length.
