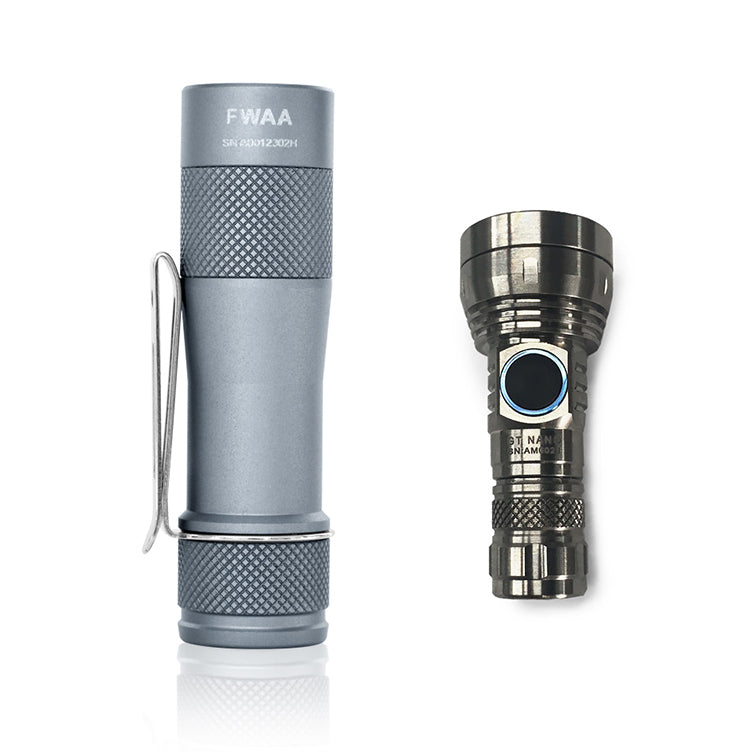

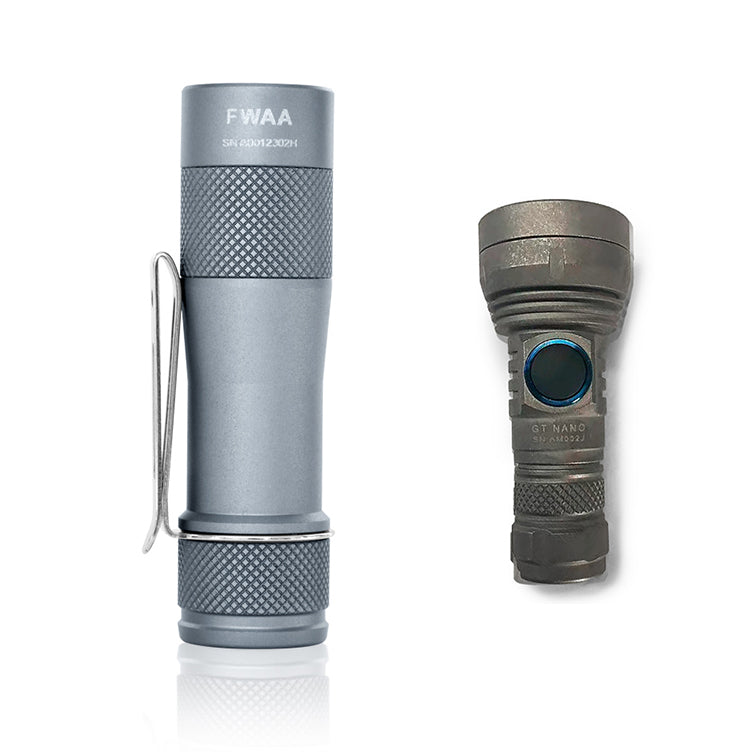

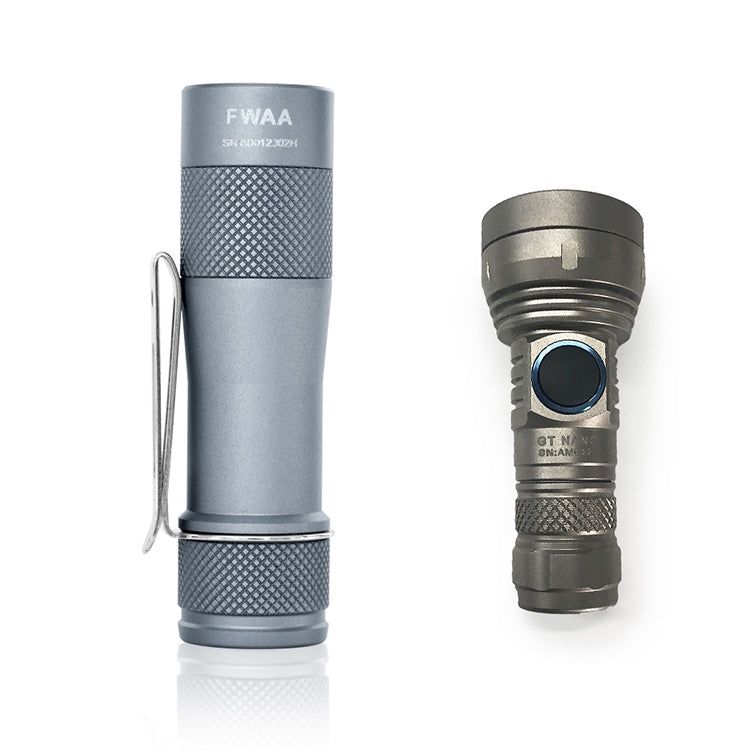

Lumintop FWAA GT NANO Ti EDC Flashlight Bundle

Write a review
| Ask a question

Regular price $114.95 USD
Regular price Sale price $114.95 USD

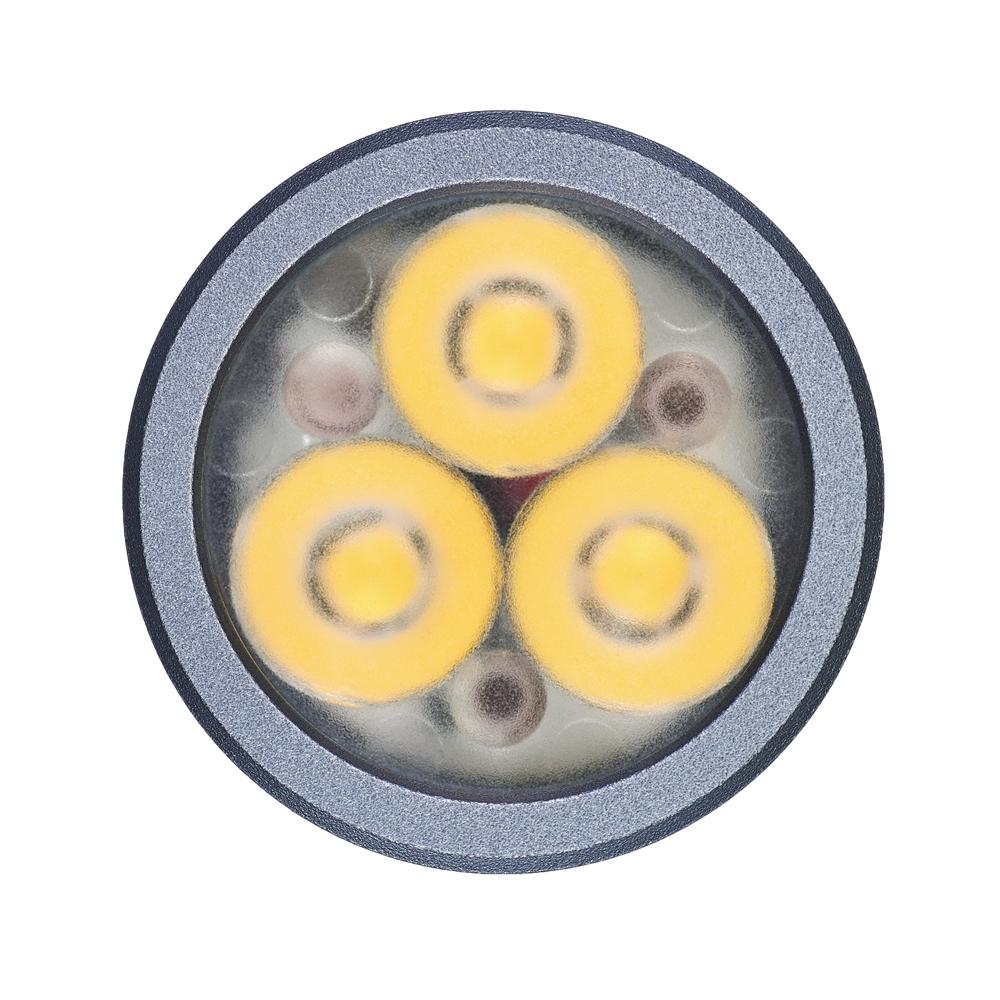

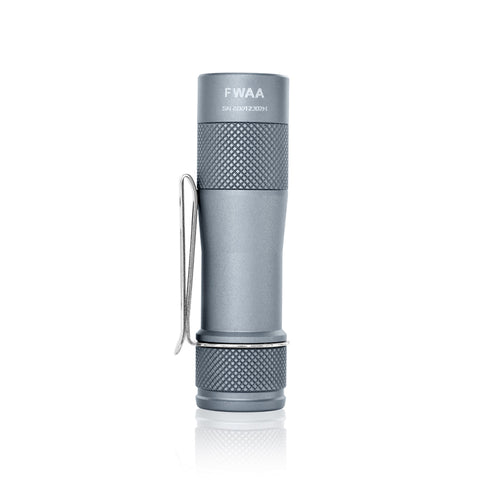

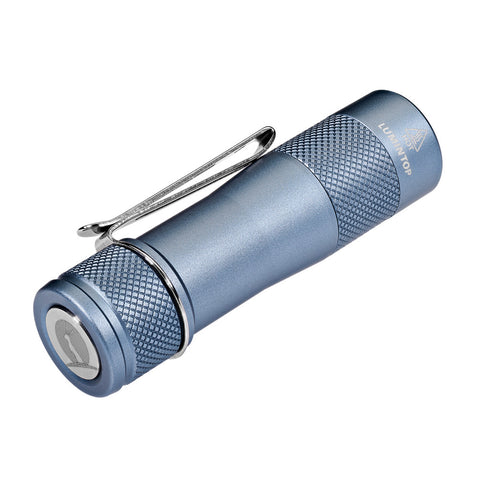

Emitter:   Three LEDs on a copper DTP MCPCB e.g.
                 Cree XP-G3(CW 6500K) and Nichia 219C (3000K/4000k/5000k) LED
                  SST20 4000K
Optic:       Standard TIR optics
Lens:       Glass with anti-reflective coating
Flux:        ~1400 lm (XPG3), ~1200 lm (Nichia)
Intensity: ~2250 cd ANSI throw ~95 m (XP-L Hi)
Firmware: The FWAA uses free software called Andúril2,
                  distributed under the terms of the GPL v3. Code is available from
User interfaces:    [1] By default the FWAA is set to use SMOOTH RAMPING.
                  Instant access to TURBO mode is also provided.
                  [2] A more conventional STEPPED RAMPING UI is available if you
                  like discrete modes level. You can choose how many steps you want.
                  [3] MOMENTARY mode is useful for signaling purposes or rapidly/briefly
                  lighting up targets. To exit this mode, physically disconnect power
                  [4] MUGGLE mode uses a reduced output.
                 [5] It has an electronic LOCKOUT for safety, but acts also as momentary
                 low light.Other functions: Battery check, sunset, beacon,
                 tactical strobe, party strobe, bike flasher, candlelight, lightning storm
Battery:  One 14500 cell. An unprotected cell is recommended.
                Max. length 50.5 mm. Cell is not included.
Driver:    FET+7+1 driver. Low parasitic drain while OFF

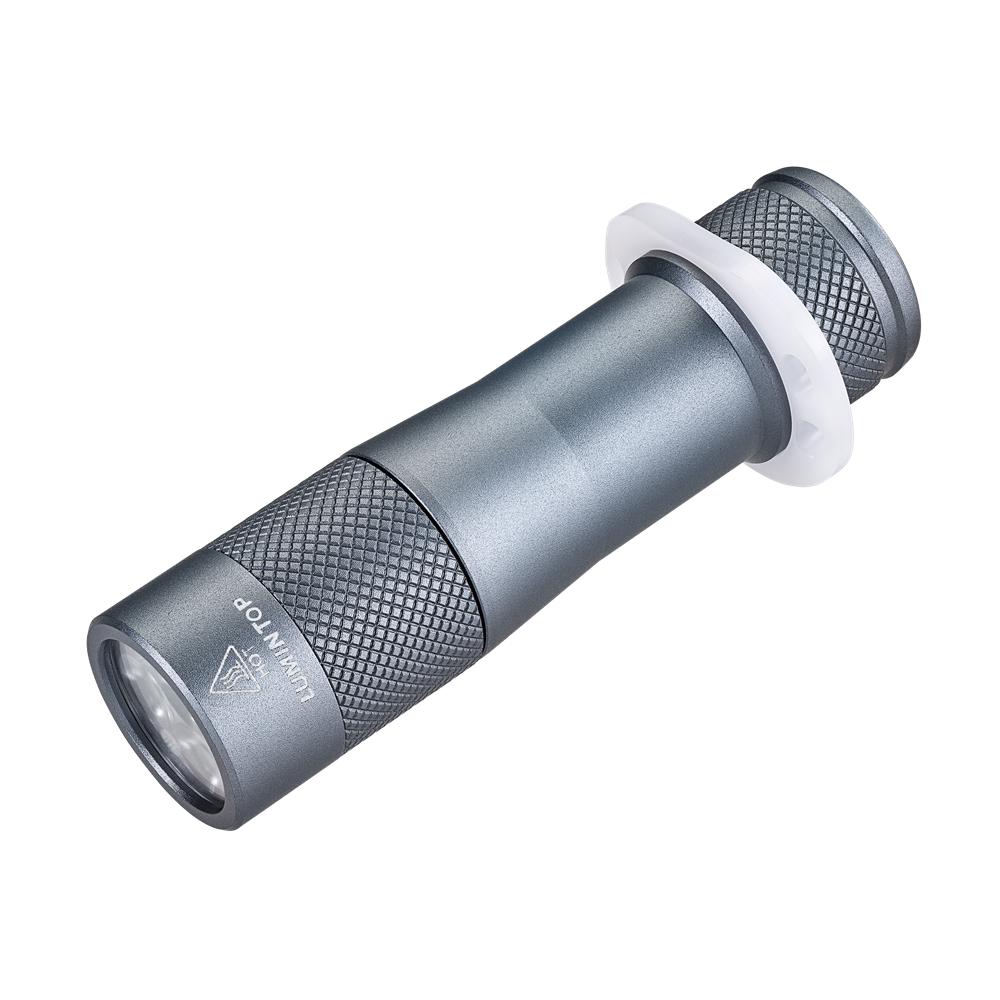

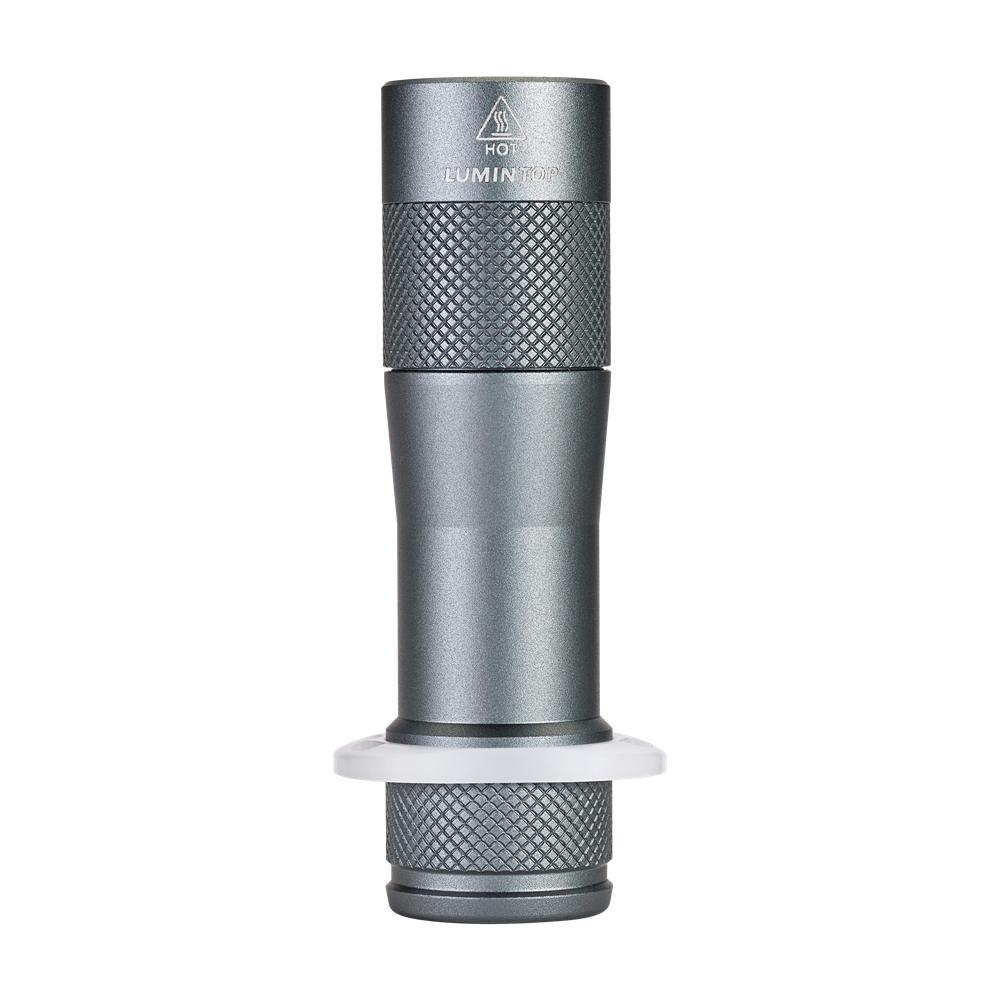

Body:      Aluminum with hard-coat anodizing
Switch:   Electronic tail switch
Ingress rating: Equivalent to IPX7
Weight:  Approximately 30.5 g without cells

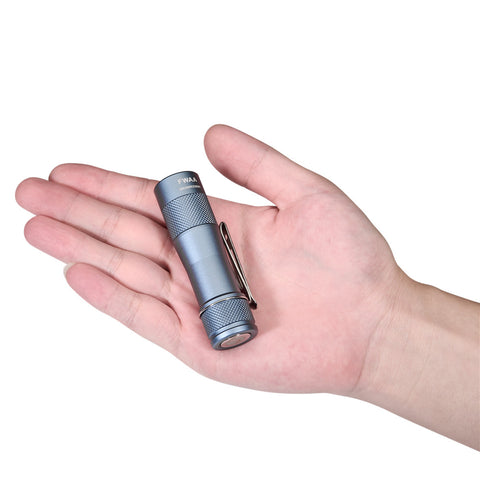

Size:      20.5 mm Ø head x 70.9 mm length.

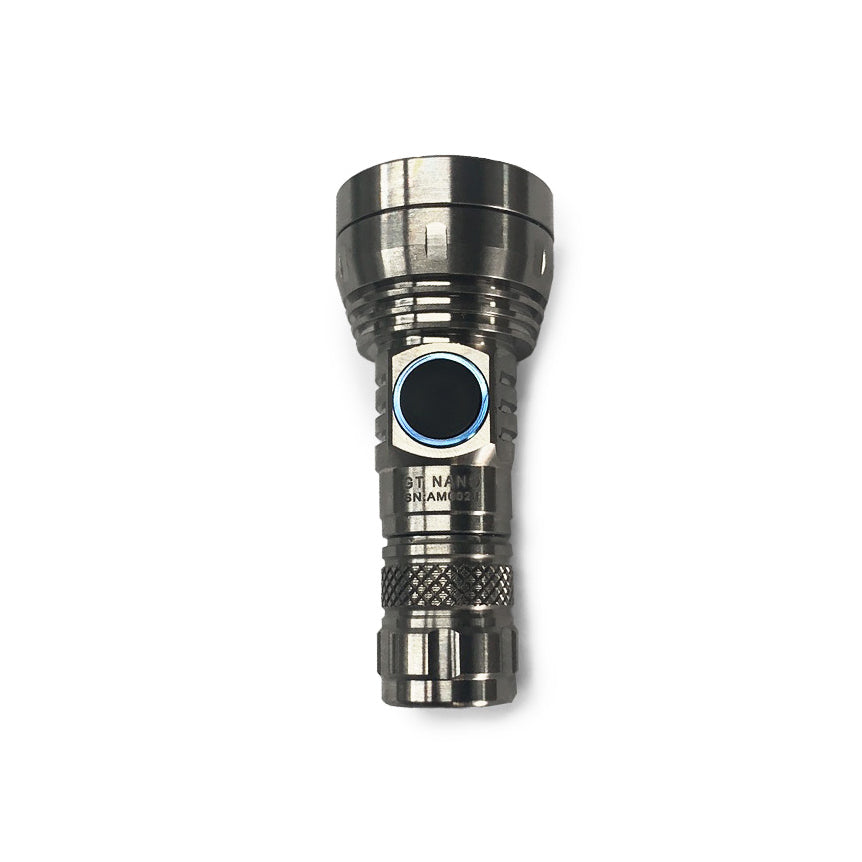

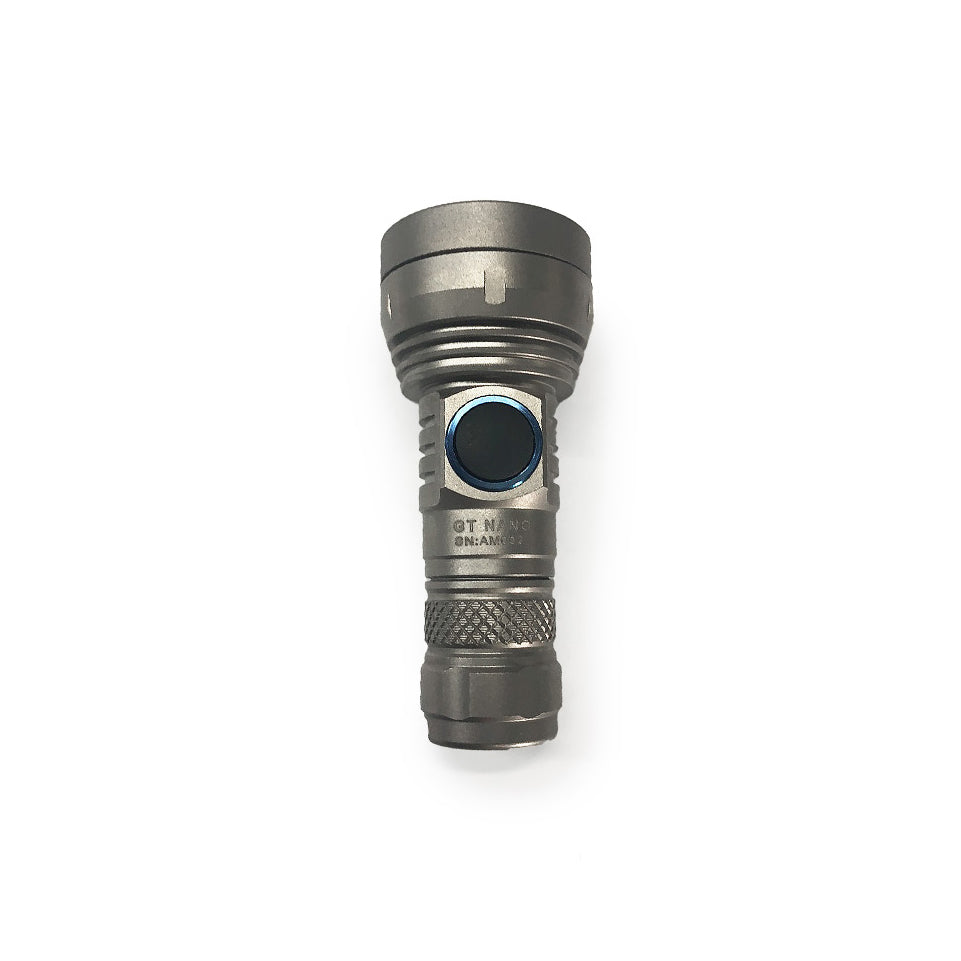

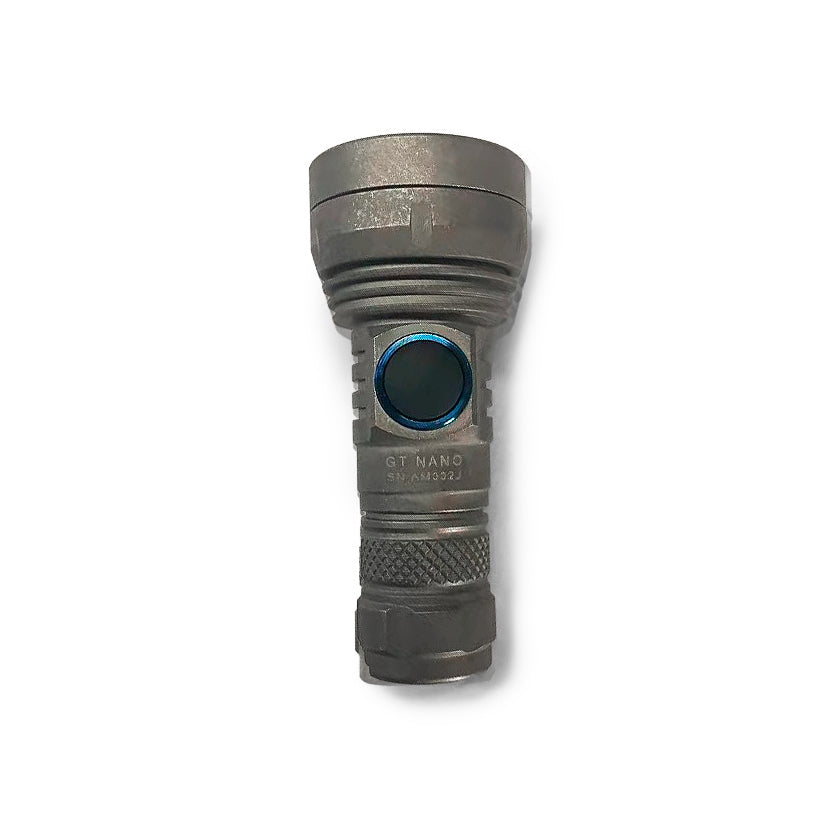

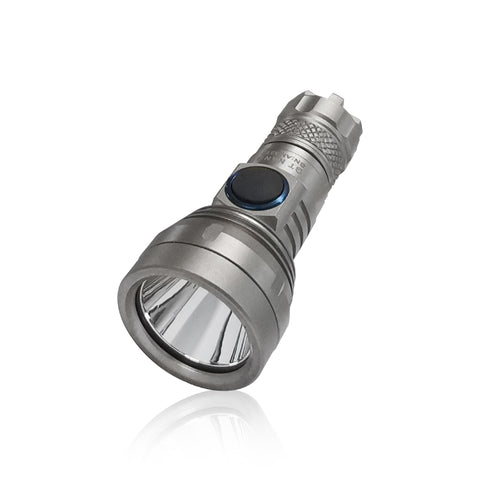

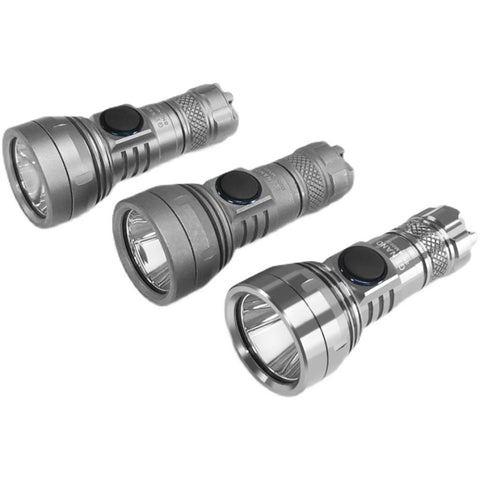

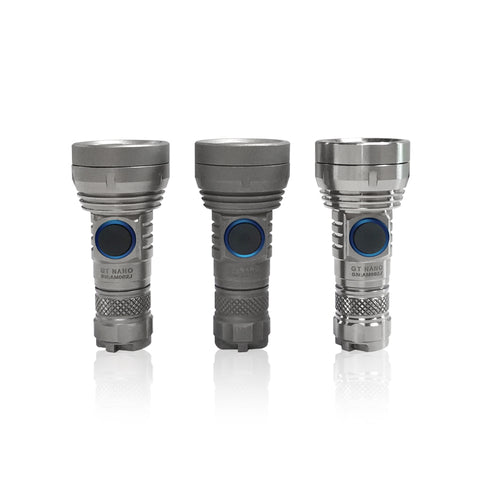

Flux: ~ 450 lm
Throw: ~ 300 m &, ~ 23400cd
Firmware: Tom E’s open-source GPL NarsilM v1.3 adapted by Texas_Ace
User interface: [1] By default the GT Nano is set to use the very intuitive Narsil smooth RAMPING UI. Instant access to a 2.5A TURBO mode is also provided.
[2] A more conventional discrete level MODE-SET UI is available as an alternative. Any one of 12 pre-defined mode-sets can be selected.
[3] MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets.
Battery: One button-top 10180 Li-ion (included).
Driver: Texas Avenger FET driver
Reflector: 20.8 mm ID, aluminum, smooth finish
Lens: Glass with anti-reflective coating
Button: Tactile with back-lit rubber boot
Ingress rating: Equivalent to IPX-8, underwater 2m
Weight: Approximately 34g without cells
Dimensions: 24 x 52.5mm
Accessories: 1*GT Nano, 1*10180 Li-ion battery, 1*Manual, 1*Keychain, 1*Lanyard, 1*Charger, 2*Spare O-ring
