Vapcell

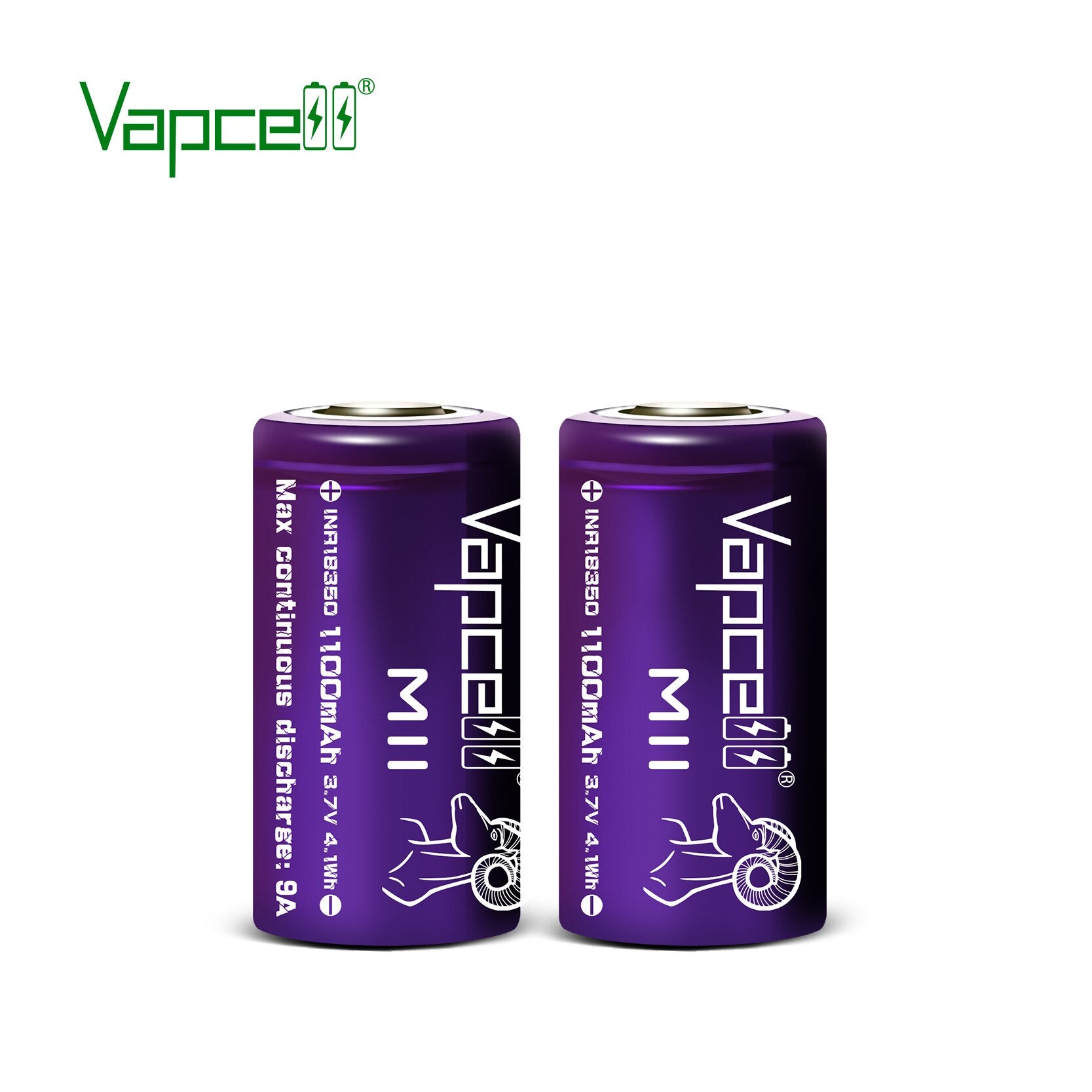

Vapcell M11 18350 M11 1100mah 9a Lithium Battery
Couldn't load pickup availability
Notice： Battery Need to ship iside of the flashlight
 SpecificationÂ
|
Model |
INR18350 |
|
Size |
18.1*35.0mm |
|
Nominal voltage |
3.70V |
|
End-of-charge voltage |
4.20V |
|
End-of-discharge Voltage |
2.50v |
|
Typical Capacity |
1100mAh (0.2C discharge) |
|
Min capacity |
1000mAh (0.2C discharge) |
|
Weight |
Max:26g |
|
Internal resistance |
Max:25mΩ（AC 1kHz） |
|
Standard Charge |
500mA,CCCVÂ 100mAÂ cut-off |
|
Charging Time |
3hours(standard charge) |
|
Quick Charge Current |
1500mA |
|
Max Continuous Discharge Current |
9A |
|
Operating Temperature |
Charging, 0°C ~ 45°C |
|
Discharging, -20°C~70°C |
|
|
Storage Temperature |
-5°C~35°C |
|
Storage Humidity |
≤75%RH |
|
Appearance |
Without scratch,distorion,contamination, |
|
and leakage |
|
|
Standard environmental condition |
Temperature:23±5°C |
|
Humidity:45-75%RH |
|
|
Atmospheric Pressure :86-106KPA |
1.Do not modify,disassemble,puncture,cut,crush,short circuit.
2.Do not expose Vapcell batteries to water,fire,or high temperatures locations.
3.Do not use Vapcell batteries with defective flashlight mods.
4.Do not disassemble,dispose in fire,heat or short circuit.
5.Do not put the Vapcell battery in a charger or equipment with wrong terminals connected.
6.Do not use Vapcell batteries the wrap is damaged.
7.Do not store loose in a pocket,purse,etc.Always use a protective case for storage and transport.
